How to make a useful mini table saw? 3D printed hobby saw. Here I will show you how to make an improved version of a small table saw with a 3D printer. A very useful and powerful saw for hobby work.
I redesigned this table saw to be much more functional. He works very well. I hope it will be useful for you too.
I printed the body of the saw with PLA filament. I printed the engine mounting parts with PLA. An insulated spacer will be needed to prevent PLA from being affected by engine temperature. This section is available among the files. And in order for this part to withstand heat, it needs to be printed with PETG, ABS or ASA.
You can change the motor position to tension the timing belt as needed. There is a distance of 4.6mm for this.
The saw blade I used is 65mm in diameter and 0.5mm thick. 60mm blade can also be used instead of 65mm. Hole diameter should be 6mm. Thickness between 05mm and 08mm should be preferred.

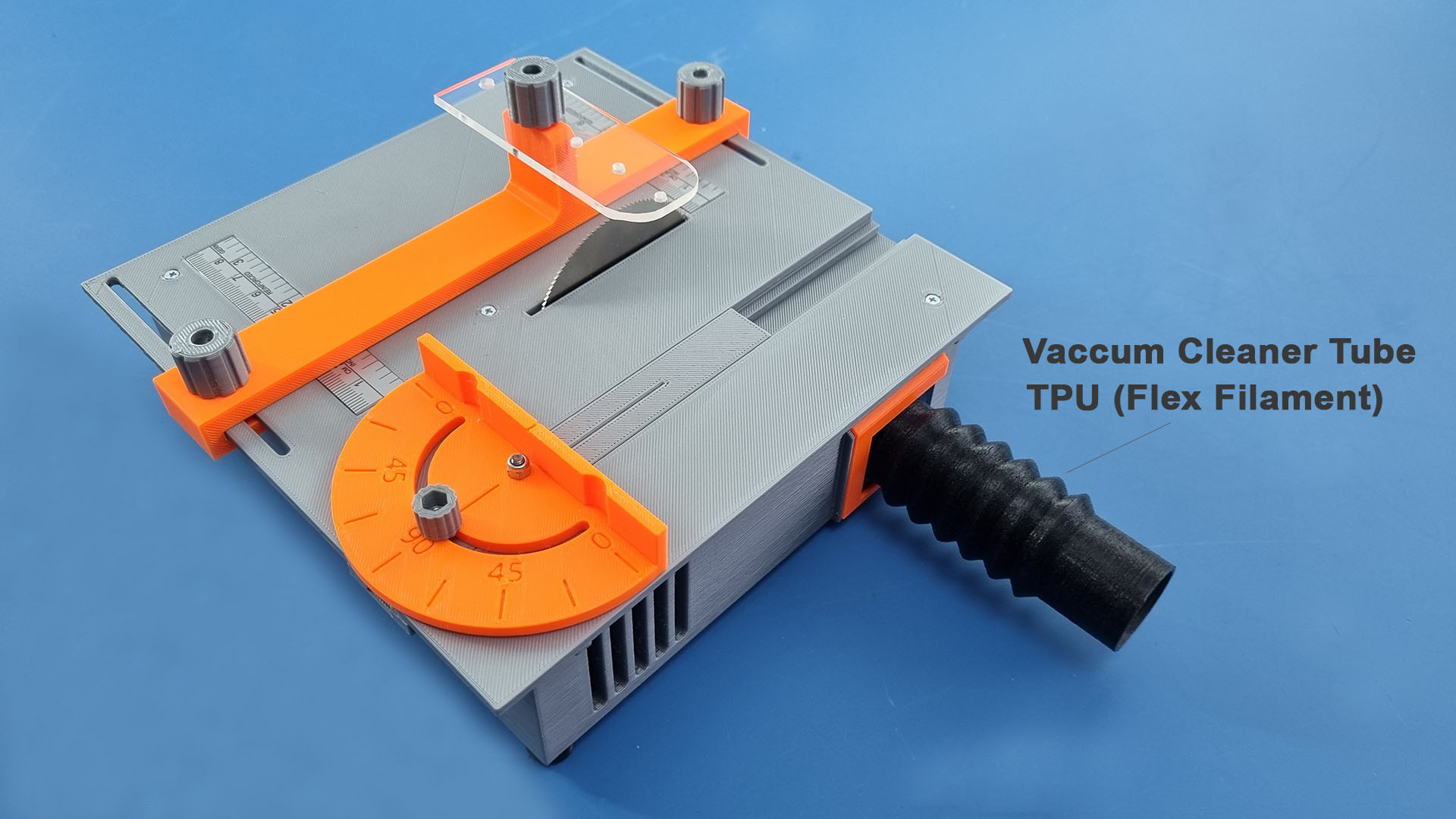

In order to clean the dust accumulated in the box, it can be connected to the vacum cleaner by using the hose printed with Flexible filament (TPU).
You Needs:
DC 775 Motor 24V 15000Rpm: https://s.click.aliexpress.com/e/_DnPUOqP
65mm circular saw blade (65×0.5x6x120T) or (65x08x72T) or (60×06.6x120T): https://s.click.aliexpress.com/e/_omK4ayH
Ball bearing 8X22X7 (608): https://s.click.aliexpress.com/e/_DBoGMux
Big timing pulley (40TW6B8) Bore:8mm , Width:6mm , Teeth:40: https://s.click.aliexpress.com/e/_DeKE9Kx
Small timing pulley (20TB5W6) : https://s.click.aliexpress.com/e/_DEUn3Pt–
2GT-200 Timing belt: https://s.click.aliexpress.com/e/_DesJK6n OR https://s.click.aliexpress.com/e/_DlPM9cn
Saw Blade Connecting Shaft (M6-8) : https://s.click.aliexpress.com/e/_DEJQ0aj
8mm x 100mm Stainless Steel Rod: https://s.click.aliexpress.com/e/_opciXZx OR https://s.click.aliexpress.com/e/_oF6TwFL
Power Supply 24V 6A or 8A : https://s.click.aliexpress.com/e/_DBP9Syb OR
Power Supply 24V 6A or 8A : https://s.click.aliexpress.com/e/_DDCbI7p
Rocker button: https://s.click.aliexpress.com/e/_Ddg4ZfH
Drill Chuck (8mm): https://s.click.aliexpress.com/e/_DmrVLWb
Self Adhesive Metric Measure Tape : https://s.click.aliexpress.com/e/_DmMWJXz
Silicone cable (14AWG): https://s.click.aliexpress.com/e/_DE2EapN
XT60 Connector: https://s.click.aliexpress.com/e/_DeFsIGx
Screws (M2.2 -2.3) : https://s.click.aliexpress.com/e/_DDgkdm3 OR https://s.click.aliexpress.com/e/_Dkj7J3V OR https://s.click.aliexpress.com/e/_DmbTmCF
Screws (M2.2x16mm) For top cover:https://s.click.aliexpress.com/e/_Dc6ssGV
3x20mm : https://s.click.aliexpress.com/e/_DCB0FK3
Acrylic Plate Plexiglas : https://s.click.aliexpress.com/e/_Dd82Yld
Silver PLA Filament : https://s.click.aliexpress.com/e/_DkLupKT
TPU Flex Filament: https://s.click.aliexpress.com/e/_DF2ZniF
——————————–
Tachometer: https://s.click.aliexpress.com/e/_DEJYZ9d
Mini Cordless Screwdriver: https://s.click.aliexpress.com/e/_Dn1Xdl1
MiniQ BG-515 Bench Drill Stand: https://s.click.aliexpress.com/e/_DCTZqm3
STL files for 3D printer: https://www.printables.com/model/736387-very-useful-mini-table-saw-v20
CAUTION! : Cutting tools can be dangerous. Care should be taken while using it. It is recommended to use with protective glasses.
Dimension : 190x188x58mm

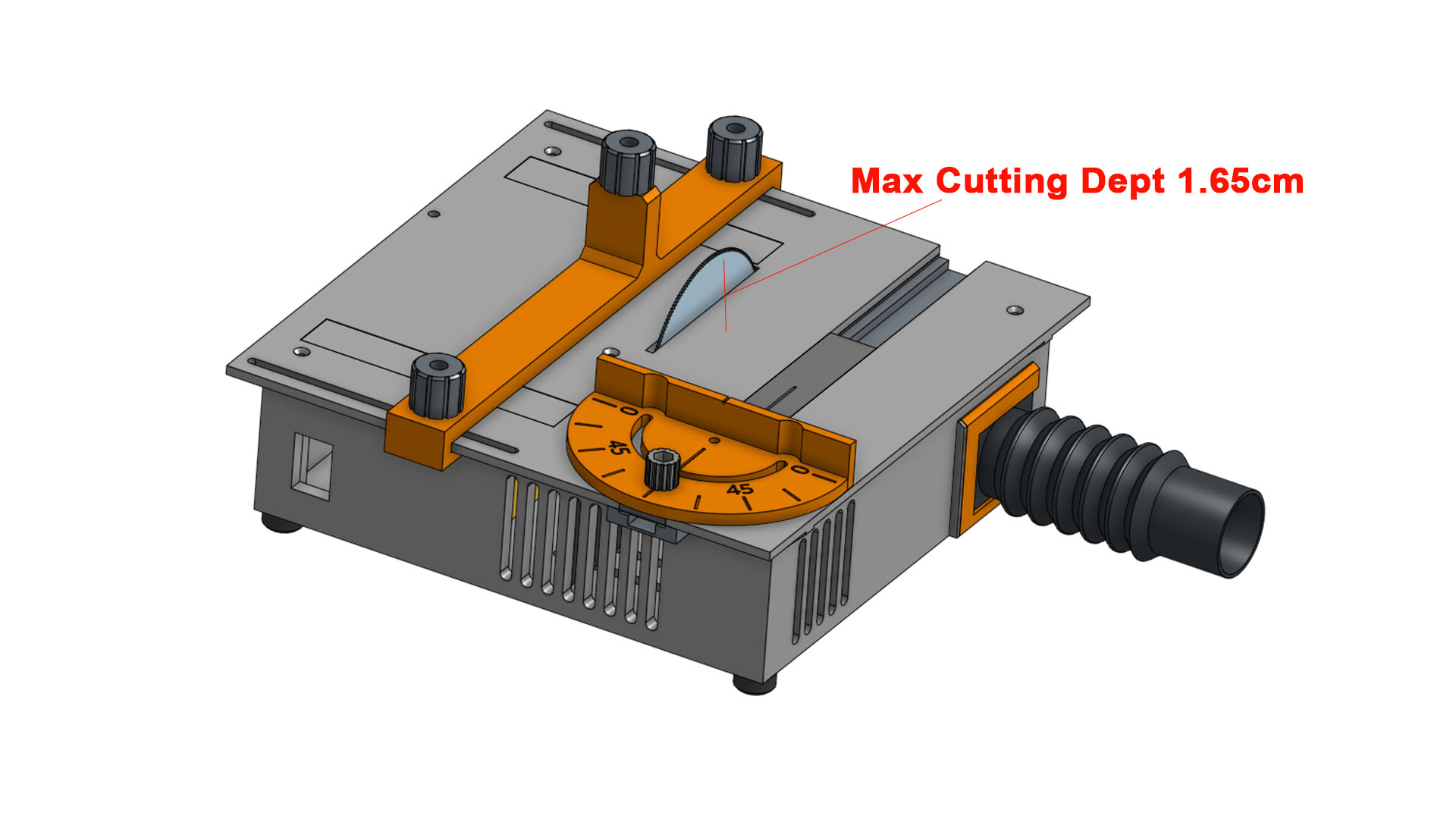

Max. depth of cut : 16.5mm
Slicer Settings For Parts:
Main Box: Draft, Wall 4, Infill 40 (PLA)
Mainboard : Draft, Wall 4 , Infill 40 (PLA)
Motor mount insulation part: Draft,Standard settings suitable for filament (PETG, ABS or ASA)
Miter: 0.2 Layer, Standard settings (PLA)
Motor mount part 1: Draft, wall 4, Infill 50 (PLA) (Support Needed)
Motor mount part 2: Draft, wall 4, Infill 50 (PLA)
Safety push rod: Draft, Infill 60 (PLA)
Parts for which you can use standard slicer settings (0.2 Layer PLA):
Bearing Holder
Mainboard part 2
Mainboard part 1
Miter Nut part
Miter slider
Slider Bar
Slider Bar part (x 3 pcs)
Tube Part
Parts for TPU Filament (Standart TPU Flex filament settings):
Foot TPU (x 5 pcs)
TUBE TPU
