Making RC trainer model airplane for beginners. Brushless motor, Four channels
The model airplanes that are ideal for beginners are training models. How to make a training RC model plane?
Prefer training model aircraft while starting the remote control model plane hobby will be much more useful in the process of learning to fly.
Necessary Materials:
* 2212 980 or 1400KV Brushless Motor: https://s.click.aliexpress.com/e/_DFzg7az OR https://s.click.aliexpress.com/e/_DFrCjHT
* 8×6 propellers: https://s.click.aliexpress.com/e/_DCOHcLh
* 30A Brushless ESC : https://s.click.aliexpress.com/e/_DdQ3jtj OR https://s.click.aliexpress.com/e/_DlZQrsZ
* 1 x LiPo Battery 11.1V 1000 mAh: https://s.click.aliexpress.com/e/_DEnwHph
OR 11.1V 1300 mAh: https://s.click.aliexpress.com/e/_DmKekW1 OR
* https://www.banggood.com/custlink/KD3EkUCNwU
* (2pcs) 40mm wheel: https://s.click.aliexpress.com/e/_DBKUPzd
* 4 pieces horns: https://s.click.aliexpress.com/e/_DDCpowp
* 4 or 6 channel radio control system: https://s.click.aliexpress.com/e/_DBV0QzB OR https://s.click.aliexpress.com/e/_DmyC9Jf OR https://s.click.aliexpress.com/e/_DCPHEVN
* 4 micro servos (may be 9gr servos): https://s.click.aliexpress.com/e/_Dm9dNHh OR https://s.click.aliexpress.com/e/_DcIZWc3 OR https://s.click.aliexpress.com/e/_DEjjiAr
* Gold Connectors 3.5mm (Motor & ESC connections): https://s.click.aliexpress.com/e/_DmxurfH
* Wheel stopper: https://s.click.aliexpress.com/e/_DCcQYir
* Y extension cable: https://s.click.aliexpress.com/e/_DegReWn
* Adjustable Linkage stopper (Easy Link): https://s.click.aliexpress.com/e/_Dkvqb51

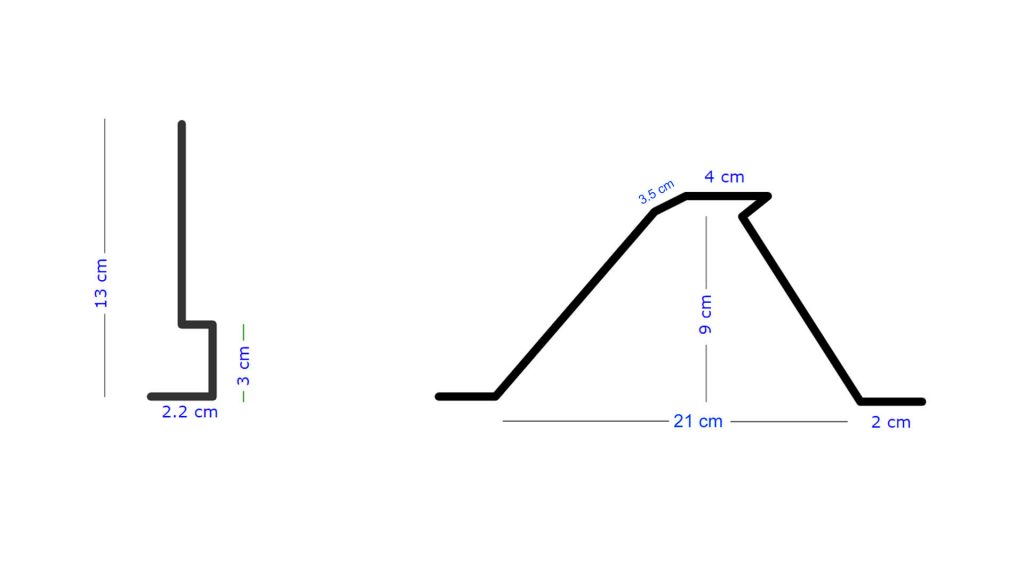

* Pushrods & landing gear rod: https://s.click.aliexpress.com/e/_DENblcj
* L type nylon clevis keper clip: https://s.click.aliexpress.com/e/_DkuA2an
* Canopy Hatch Lock : https://s.click.aliexpress.com/e/_DE3cpQF
* Fiber Strips Adhesive Tape : https://s.click.aliexpress.com/e/_DlMRzRZ
* Fastener strip : https://s.click.aliexpress.com/e/_DlSumBF
* Heat-Shrink: https://s.click.aliexpress.com/e/_DnMQjEj
* Plastic Tube (2×3): https://s.click.aliexpress.com/e/_DmthiSF
* M3x16 screw for steering: https://s.click.aliexpress.com/e/_DkeK35b
* Optionel steering arm: https://s.click.aliexpress.com/e/_DdDbu7Z
*Screw Locking (242): https://s.click.aliexpress.com/e/_DcixNOH
* Lipo Battery Charger: https://s.click.aliexpress.com/e/_DlwNzmj OR
https://s.click.aliexpress.com/e/_DlwNzmj
* Hot melt Glue Gun: (50W) https://s.click.aliexpress.com/e/_DdtqHIl OR (100W) https://s.click.aliexpress.com/e/_Dl2EcLt
Onboard Camera:
RUN CAM 6 4K: https://s.click.aliexpress.com/e/_Dmpr5Gp
Some of the shops that sell Kraft Foam Board:
https://www.amazon.in/Pacon-Water-Resistant-Board-Natural-Boards/dp/B07CKBGQFB
https://pacon.com/board-480/water-resistant-foam-board.html
https://tinyurl.com/4ups272k
https://www.foamboard.shop/en/foamboard-ce775-5mm-70x100cm-b.html
https://www.enasco.com/p/Pacon-Water-Resistant-Foam-Board—20-in-x-30-in-%2B9742012
https://www.mwmaterialsworld.com/es/productos-en-exclusiva/plancha-de-carton-pluma-de-colores-280-gr-m2.html
Technicial Specifications:
Lenght: 640 mm
Wing span: 810 mm
Flight weight: About 495 gr
Center of gravity: 4.6 – 5.2cm from the front of the wing

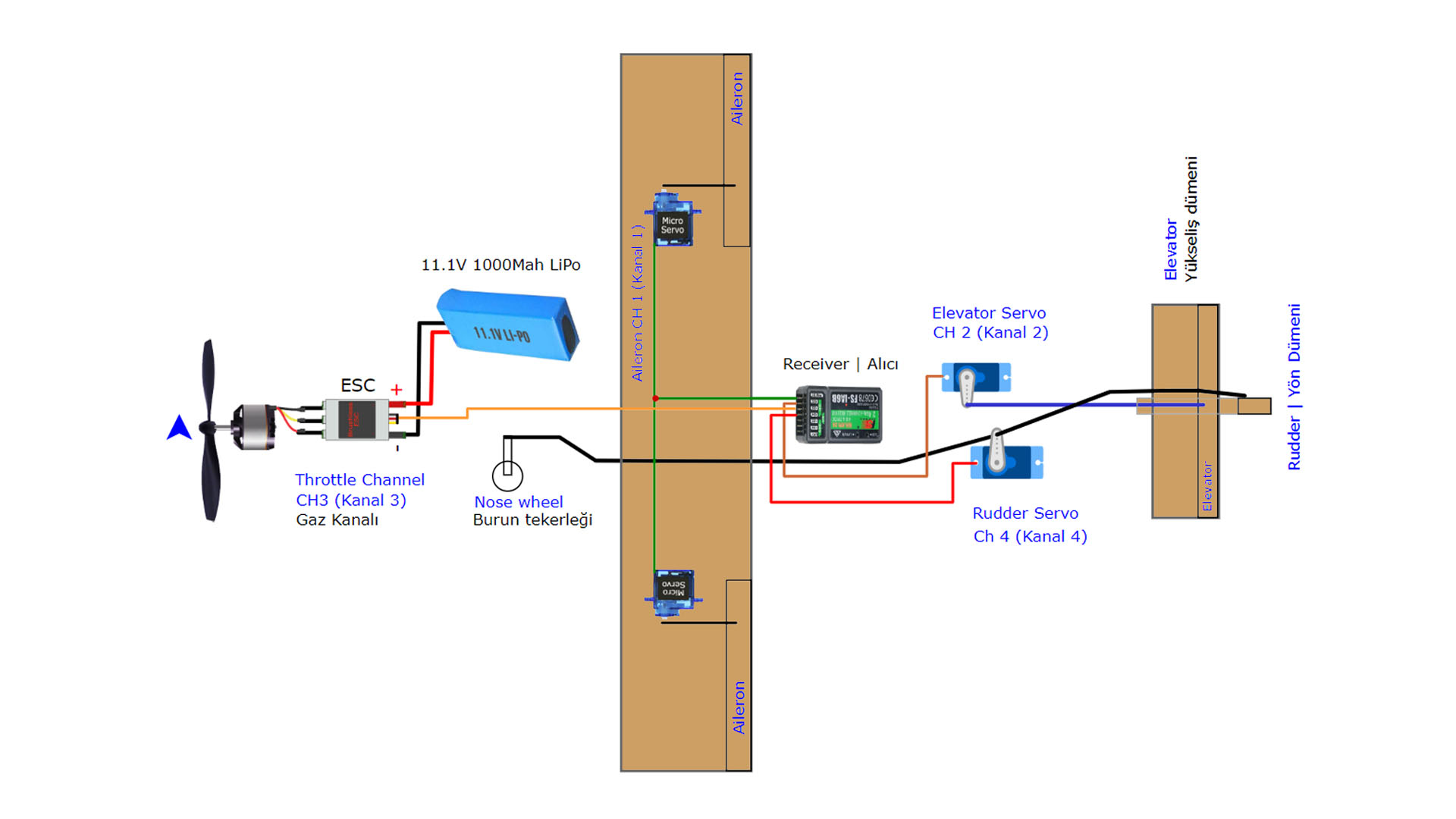

Required control system: Min. 4 channels, 4 micro servos
Suitable battery: 11.1V 1000Mah – 1300Mah Lipo battery
Suitable motor: 2212 Brushless Motor (980-1400KV)
Suitable propeller: 2 Blade 8×6 (8060)
Flight Time: About 7-8 minutes for 1000mah LiPo / about 9-10 minutes for 1300mah LiPo
